DSO138 Digital Oscilloscope 2.4″ TFT Digital Oscilloscope in Pakistan

Sold by
sherjaan
@ sherjaan

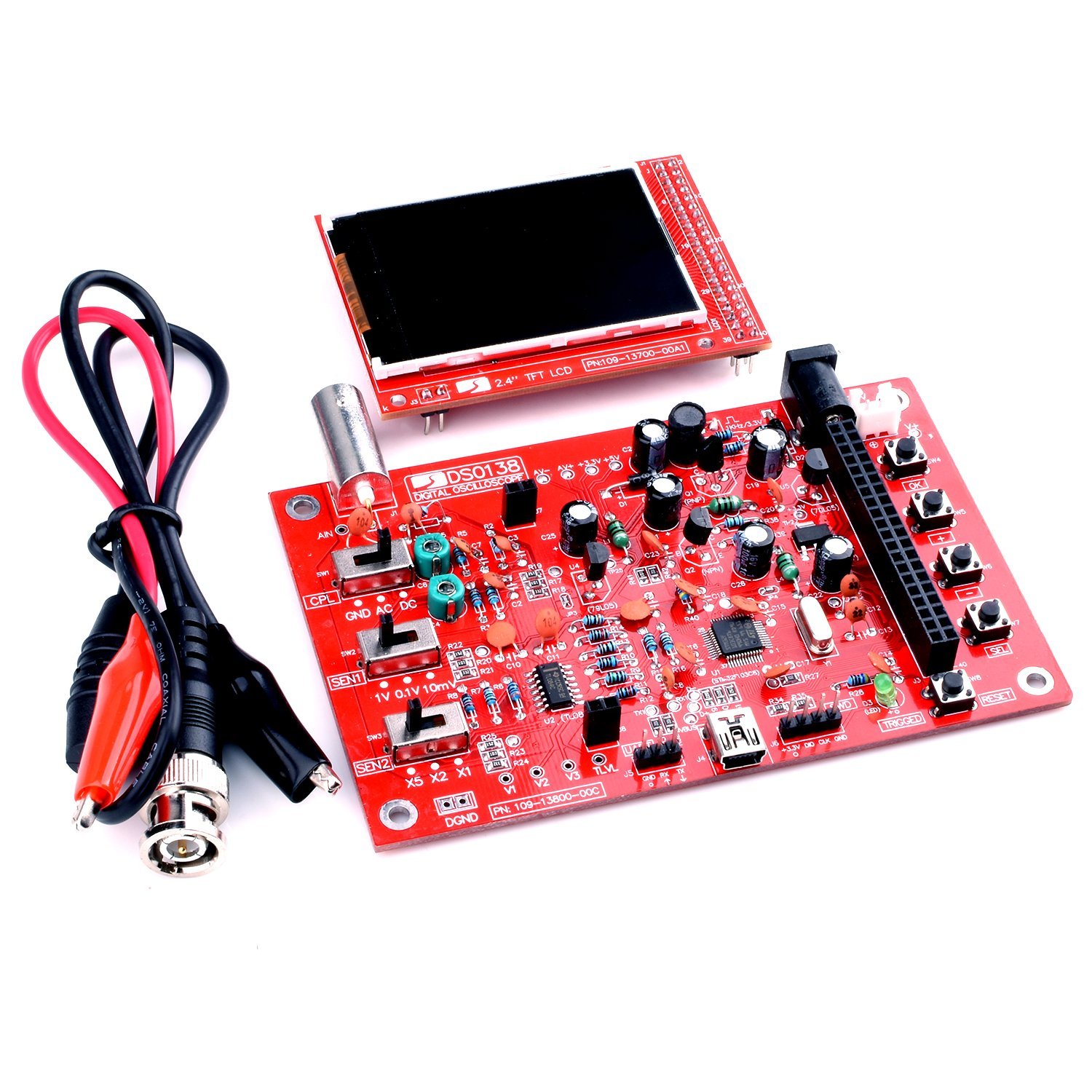

This is Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope Kit. This digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.

 5,500.00  5,000.00

In stock

Flash Sale
days
0
0
hours
0
0
minutes
0
0
seconds
0
0

This is Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope Kit. This digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.

It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

This boost converter is a great match for DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.

It also uses 2.4-inch TFT LCD (320 X 240 dot-matrix, 262K colors) as its display element that will display nice clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematic.
This DSO138 DIY Digital Oscilloscope Kit has all SMD parts pre-soldered. The MCU has been pre-programmed and no re-programming required.

Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope is easy to solder. Perfect for students to identify elements, inline elements welding, soldering SMD components training.

And you could also easily develop a secondary development kit based on DSO138. For example, it can be changed to voltmeter, data loggers, and so on.

Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope contains only the basic oscilloscope functions with no fancy features.

For these purposes, uses mostly through-hole parts: the heart is a Cortex-M3 ARM processor (STM32F103C8) from ST. It uses 2. 4-inch TFT LCD (320 X 240 dot-matrix, 262K colors) as its display element and displays nice and clear waveforms.

This Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.

It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

This boost converter is an excellent match for DSO138 oscilloscope kit. It can connect directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.

Features:

  • This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as the ARM test development board.
  • Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
  • Adjustable vertical displacement, and with instructions.
  • With automatic, regular and one-shot modes, easy to capture the moment waveform.
  • Available rising or falling edge trigger.
  • Observable previous trigger waveform (negative delay).
  • Can freeze at any time waveform display (the HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.
  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Fully Assembled DSO138 Specifications

  • Supply Voltage (V) 9V DC
  • Input Impedance (Ω) 1MΩ
  • Maximum Real-time Sampling Rate 1Msps
  • Sampling Buffer depth 1024 bytes
  • Analog Bandwidth 0-200KHz
  • Vertical Sensitivity 10mV / Div – 5V / Div (1-2-5 progressive manner)
  • Accuracy 12Bit
  • Coupling Modes DC / AC / GND
  • The Horizontal Time Base Range 10μs / Div – 50s / Div (1-2-5 progressive manner)
  • Length (mm) 118
  • Width (mm) 77
  • Height (mm) 19
  • Weight (gm) 130
  • Shipment Dimensions 17 × 12 × 3 cm

Package Included:

  • 1 x DSO138 DIY Digital Oscilloscope Kit.
  • 1 x Probe.
User Manual:-

elecrow.com/…nload/UserManual_138_new.pdf
