L298N Motor Driver Module Dual H Bridge

@ JK HALLROAD

Dual H Bridge L298N Motor Driver is a high power motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. Dual H Bridge L298N Motor Driver can control up to 4 DC motors, or 2 DC motors with directional and speed control.

 300.00

In stock

Dual H Bridge L298N Motor Driver is a high power motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. Dual H Bridge L298N Motor Driver can control up to 4 DC motors, or 2 DC motors with directional and speed control.

motor driver l298 which allows speed and direction control of two DC motors at the same time. If the motor supply voltage is up to 12V we can enable the 5V regulator and the 5V pin can be used as output, for example for powering our Arduino board.

Motor drivers acts as an interface between the motors and the control circuits. Motor require high amount of current whereas the controller circuit works on low current signals. So the function of motor drivers is to take a low-current control signal and then turn it into a higher-current signal that can drive a motor.

Control DC motors with Motor Driver L298N

  1. HIGH signal to the enable 1 pin, motor A is ready to be controlled and at the maximum speed;
  2.  LOW signal to the enable 1 pin, motor A turns off;
  3. PWM signal, you can control the speed of the motor. The motor speed is proportional to the duty cycle.

Specification of Dual H Bridge Motor Driver L298N

  • Motor supply: 7 to 24 VDC
  • Control Logic: Standard TTL Logic Level
  • Output Power: Up to 2 A each
  • Enable and Direction Control Pins
  • Heat-Sink
  • Power-On LED indicator
  • 4 Direction LED indicators

Motor Driver L298N Hardware Details

Screw terminal pin assignments
Pin Color Name Description
1 Green Motor A – Output to Motor A (-)
2 Green Motor A+ Output to Motor A (+)
3 Blue VMS Input 4-35V motor power supply (+)
4 Blue GND Ground (-)
5 Blue 5V 5V regulated power (+)
6 Green Motor B – Output to Motor B (-)
7 Green Motor B+ Output to Motor B (+)



Dual H Bridge Motor Driver L298N Header pin assignments
Header pin assignments
Pin Name Description
1 ENA Input to enable Motor A
2 IN1 Input to control Motor A
3 IN1 Input to control Motor A
4 ENA Input to enable Motor B
5 IN1 Input to control Motor B
6 IN2 Input to control Motor B

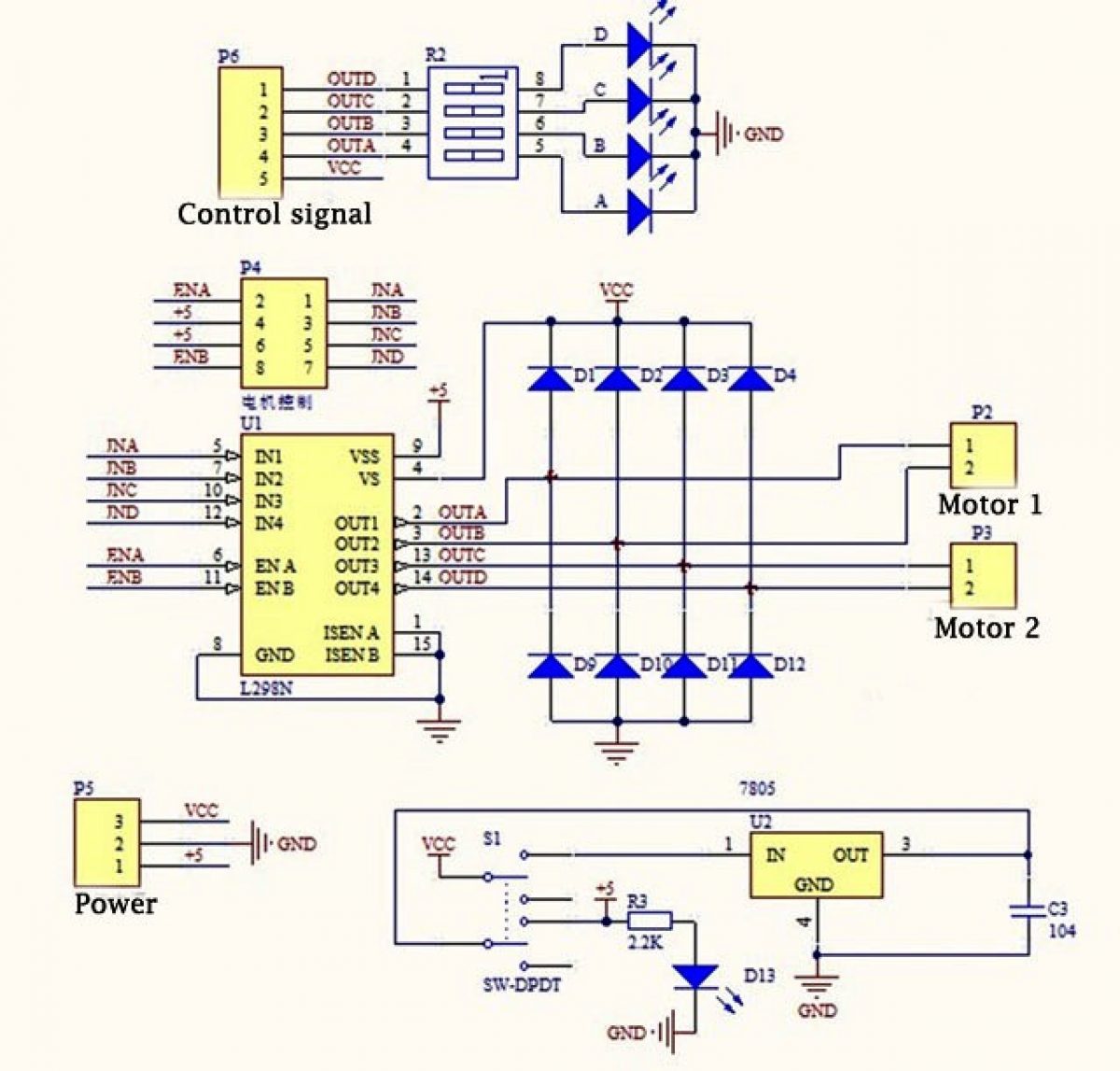

Dual H Bridge Motor Driver L298N Schematic Diagram
