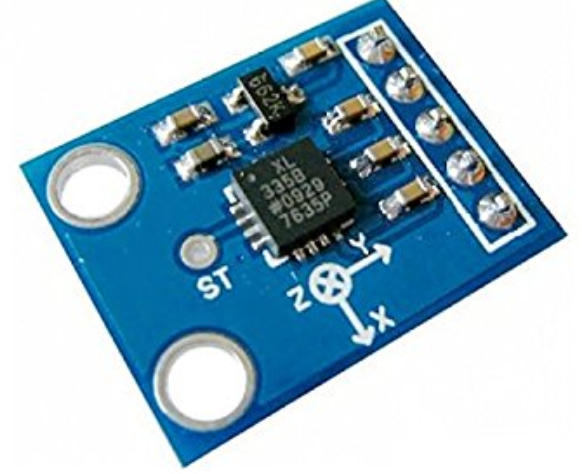

GY-61 ADXL335 3-Axis Accelerometer Module

The GY-61 ADXL335 3-axis accelerometer module is a breakout board for the ADXL335 accelerometer sensor. 3 Axis Accelerometer ADXL335 is a small, low-power, and low-noise sensor that can measure acceleration along the X, Y, and Z axes.

The GY-61 module has a simple analog output interface, making it easy to connect to microcontrollers and other devices. GY 61 ADXL335 Accelerometer also has a self-test feature that allows you to test the sensor’s functionality.

This Triple Axis accelerometer module has an operating voltage range of 3V to 5V. The GY-61 module is a great way to add accelerometer functionality to your projects. ADXL accelerometer sensor is easy to use and has a wide range of applications.

The ADXL335 3 axis accelerometer module works by using a microelectromechanical system (MEMS) sensor to measure acceleration. The MEMS sensor is a tiny chip that contains a movable mass. When the module is accelerated, the mass moves and changes the capacitance of the sensor. This change in capacitance is converted into an electrical signal, which is proportional to the acceleration.

The GY-61 ADXL335 module has three MEMS sensors, one for each axis of acceleration. The output of each sensor is a voltage that is proportional to the acceleration in the corresponding axis. The output voltage is centered at 1.65V, and it can vary by up to 1.65V in either direction, depending on the acceleration.

The ADXL335 Triple Axis Accelerometer is a versatile and powerful sensor that can use in a wide range of applications. ADXL335 module is easy to use and has a small form factor, making it ideal for use in embedded systems.

Features : –

The ADXL335 module is a high-precision accelerometer that can measure acceleration with a resolution of 8 bits. Accelerometer GY-61 ADXL335 module is easy to use and has a simple analog output interface.

The ADXL335 is a 3-axis accelerometer that measures acceleration along the X, Y, and Z axes. ADXL accelerometer sensor is a small, low-power, and low-noise sensor that is ideal for a wide range of applications, including tilt sensing, motion detection, and shock and vibration detection. The GY 61 ADXL335 3-axis accelerometer module has a number of benefits, including:

• Versatility
• Accuracy
• Sensitivity
• Low power consumption
• Small form factor
• Easy to use

GY-61 ADXL335 Specifications : –

The ADXL335 module is a small, low-power, 3-axis analog output accelerometer. accelerometer sensor ADXL335 measures acceleration along the X, Y, and Z axes, and outputs a voltage proportional to the acceleration in each axis. The ADXL335 is a versatile sensor that can be used in a wide range of applications. The 3-axis accelerometer GY-61 ADXL335 module has the following specifications:

• Sensing range: ±3g
• Sensitivity: 300mV/g
• Accuracy: ±10%
• Bandwidth: 0.5 Hz to 1600 Hz (X and Y axes), 0.5 Hz to 550 Hz (Z axis)
• Operating voltage: 3V to 5V
• Current consumption: 350μA
• Dimensions: 21mm x 16mm x 10mm
• Weight: 2g

GY-61 ADXL335 Pin Descriptions : –

The ADXL335 5V ready triple axis accelerometer module has a low power consumption, making it ideal for battery-powered applications. ADXL335 Accelerometer Sensor has a high sensitivity, which means that it can detect even small changes in acceleration.

The module has 5 pins:

• VCC: Power supply voltage (3V to 5V)
• GND: Ground
• XOUT: X-axis output voltage
• YOUT: Y-axis output voltage
• ZOUT: Z-axis output voltage

The output voltage on the XOUT and YOUT pins is proportional to the acceleration in the X and Y axes, respectively. The output voltage is centered at 1.65V, and it can vary by up to 1.65V in either direction, depending on the acceleration.

GY-61 ADXL335 Applications : –

The ADXL335 Accelerometer Sensor is a versatile sensor that can be used in a wide range of applications. GY-61 ADXL335 module can use to measure the tilt of an object, the motion of an object, or the shock and vibration applied to an object.

The ADXL335 has a simple analog output interface, making it easy to connect to microcontrollers and other devices. GY-61 ADXL335 module also has a self-test feature that allows you to test the sensor’s functionality. The ADXL335 3-axis accelerometer is a versatile sensor that can use in a wide range of applications, including:

• Tilt sensing
• Motion detection
• Shock and vibration detection
• Leveling
• Navigation
• Gaming

Package : –

1 x GY-61 ADXL335 3-Axis Accelerometer Module
