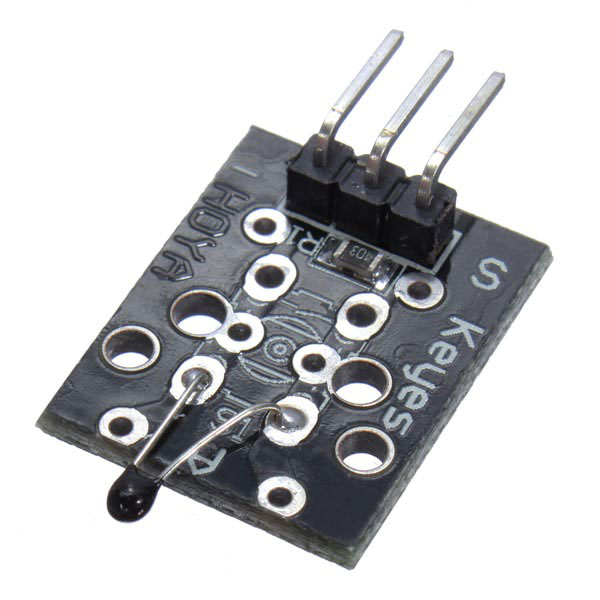

KY-013 NTC Thermistor Analog Temperature Sensor Module

KY-013 NTC Thermistor Analog Temperature Sensor is based on the Thermistor works, a sense of real-time. NTC Thermistor is a Negative Temperature Coefficient resistor

The KY-013 is a small, inexpensive sensor that can use to measure ambient temperature. It is based on a Negative Temperature Coefficient (NTC) thermistor, which means that its resistance decreases as the temperature increases. The sensor has three pins: VCC, GND, and OUT. The VCC pin connect to a power supply, the GND pin connect to ground, and the OUT pin produces an analog voltage that is proportional to the temperature.

The NTC Thermistor Temperature Sensor KY-013 can use with a variety of microcontrollers, including Arduino, Raspberry Pi, and ESP32. There are many libraries available that make it easy to read the sensor’s output and convert it to a temperature reading.

The KY-013 NTC Thermistor Temperature Sensor Module can power by a voltage of 3.3V to 5V. The default voltage is 5V. The input voltage is used to power the thermistor and the 10K-ohm resistor. The output voltage of the sensor is proportional to the temperature, and it is typically in the range of 0V to 5V.

The KY-013 NTC Thermistor Temperature Sensor Module works on the principle of a Negative Temperature Coefficient (NTC) thermistor. An NTC thermistor is a type of resistor that has a resistance that decreases as the temperature increases. This is because the resistivity of the thermistor’s semiconductor material decreases as the temperature increases.

Overall, the KY-013 Analog Temperature Sensor is a versatile and affordable sensor that can use for a variety of applications. If you are looking for a way to measure temperature, the KY-013 is a good option to consider.

Features : –

The KY-013 NTC Thermistor Temperature Sensor Module has a thermistor and a 10K-ohm resistor that are connected in a voltage divider circuit. The voltage divider circuit produces an output voltage that is proportional to the resistance of the thermistor. The output voltage of the sensor is typically in the range of 0V to 5V.

The output voltage of the sensor can use to measure the temperature by using a calibration curve. The calibration curve is a graph that shows the relationship between the output voltage of the sensor and the temperature. The calibration curve is typically provided by the manufacturer of the sensor. The KY-013 NTC Thermistor Temperature Sensor Module has a number of benefits, including:

• Low cost: The module is relatively inexpensive, making it a cost-effective way to measure temperature.
• Wide operating temperature range: The module can measure temperature in the range of -55°C to +125°C, making it suitable for a variety of applications.
• Small size: The module is small and lightweight, making it easy to incorporate into projects.
• Easy to use: The module is easy to use with a variety of microcontrollers, making it a good choice for beginners.
• Reliable: The module is reliable and can provide accurate temperature readings over a long period of time.

Here are some additional benefits of the KY-013 NTC Thermistor Temperature Sensor Module:

• Low power consumption: The module consumes very little power, making it suitable for battery-powered applications.
• Durable: The module is durable and can withstand harsh environmental conditions.
• Scalable: The module can be easily scaled up to measure temperature in larger areas.

KY-013 NTC Thermistor Analog Temperature Sensor Specifications : –

The KY-013 NTC Temperature Sensor module has an NTC thermistor, which is a type of resistor that has a negative temperature coefficient. This means that the resistance of the thermistor decreases as the temperature increases. The module also has a 10K-ohm resistor, which is used to calibrate the sensor. here are the specifications of the KY-013 NTC Temperature Sensor:

• Operating voltage: 3.3V to 5V
• Measuring range: -55°C to +125°C
• Accuracy: ±2°C
• Output voltage: 0V to 5V
• Input resistance: 10K-ohm
• Specific resistance: 3950 Ω
• Dimensions: 3 x 1.5 x 0.6cm
• Weight: 2g

KY-013 NTC Thermistor Analog Temperature Sensor Pin Descriptions : –

The output voltage of the OUT pin is proportional to the temperature. The output voltage can use to measure the temperature by using a calibration curve. The calibration curve is a graph that shows the relationship between the output voltage of the sensor and the temperature. The calibration curve is typically provided by the manufacturer of the sensor.
The KY-013 Temperature Sensor has three pins:

• VCC: This pin connect to a power supply, typically 3.3V or 5V.
• GND: This pin connect to ground.
• OUT: This pin produces an analog voltage that is proportional to the temperature. The output voltage is typically in the range of 0V to 5V.

KY-013 NTC Thermistor Analog Temperature Sensor Applications : –

The KY-013 Temperature Sensor is a valuable tool for a variety of applications. It is easy to use, reliable, and affordable, making it a good choice for beginners and experienced users alike. The KY-013 Temperature Sensor is a versatile sensor that can use in a variety of applications. Here are some examples:

• Monitoring the temperature of a room or object
• Controlling the temperature of a heating or cooling system
• Measuring the temperature of a chemical reaction
• Creating a temperature alarm

Package : –

1 x KY-013 NTC Thermistor Analog Temperature Sensor
