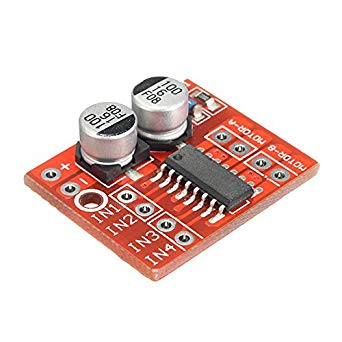

1.5A H-Bridge Dual Channel DC Motor Driver Module

1.5A H-Bridge Dual Channel DC Motor Driver Module is a motor controller breakout board which is typically used for controlling speed and direction of motors.

It can also be used to control the brightness of certain lighting projects such as high powered LED arrays.

motor drive module is ideal for use in battery-powered smart car, toy cars, robots. Supply voltage 2V ~ 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.

1.5A H-Bridge Dual Channel DC Motor Driver Module can deliver 1.5A per channel continuously (1.5 A peak) to a pair of DC motors, and it supports two possible control interfaces for added flexibility of use.

Features: –

• Motor drive module is ideal for use in battery-powered smart car, toy cars, robots.
• Supply voltage 2V ~ 10V, can drive two DC motors or a 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed.
• Each can provide continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.

1.5A H-Bridge Dual Channel DC Motor Driver Module Specifications: –

• Dual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motor.
• The module supply voltage 2V-10V.
• Signal input voltage 1.8-7V.
• Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA).
• Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.
• Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.
• Product Size: 24.7 * 21 * 5mm (length, width, height), ultra-small size.
• The mounting hole diameter: 2 mm

Note: –

• Power positive and negative reversed will certainly cause damage to the circuit.

• Output is shorted to ground or output short circuit, and the motor stall, the chip will heat protection, but in the near or exceeding 10V voltage and peak current is greater than 2.5A situation can also cause chip burned.

Package: –

1 x 1.5A H-Bridge Dual Channel DC Motor Driver Module
