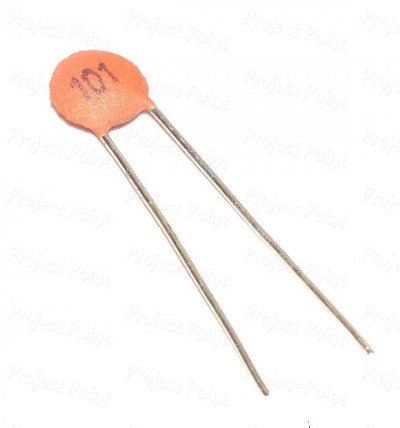

100pf Ceramic Disc Capacitor

100pF ceramic disc capacitor is a passive electronic component that stores electric charge. The capacitance of the capacitor is measured in picofarads (pF), and a 100pF capacitor has a capacitance of 100 x 10^-12 farads.

100pF Ceramic Disc Capacitor uses for power decoupling, having a smooth power in your circuit, timing circuits etc. It is always a good idea to put one of these next to the power pins of a microcontroller.

Ceramic disc capacitors are used in a wide variety of electronic circuits, including radios, televisions, and computers.

They are often used as bypass capacitors, which help to filter out noise from the power supply. Ceramic disc capacitors are also used as decoupling capacitors, which help to reduce the voltage fluctuations on a circuit’s power rails.

A ceramic capacitor is a fixed-value capacitor in which ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes.

The composition of the ceramic material defines the electrical behavior and therefore applications

Ceramic capacitors are most commonly found in every electrical device and it uses a ceramic material as the dielectric. The ceramic capacitor is a non-polarity device, which means, you can connect it in any direction on a circuit board.

They are generally much safer than electrolytic capacitors. This Through Hole Mount (DIP) Multilayer Ceramic Capacitor is made of ceramic dielectric in which a number of interleaved metal electrodes are contained. It is very low cost, and used mostly for reducing the noise or filtering on data lines, power lines etc.

Features : –

• High reliability

• Low losses

• High capacitance in small size

• Kinked leads
• Stable, Low Cost Ceramic Capacitor
• Accuracy: ±20%
• Operating Temperature Range: +10°C to +85°C

100pf Ceramic Disc Capacitor Specifications : –

100pf Ceramic Disc Capacitor Applications : –

• In electronic circuits where low losses and high capacitance per volume are essential, for example:

• SMPS

• HF ballast

• Snubber and high voltage circuits

Package : –

1 x 100pf Ceramic Disc Capacitor
