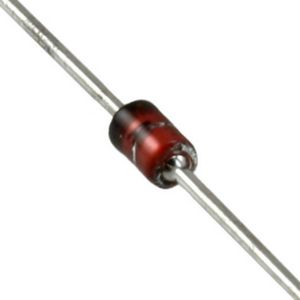

5.6V Zener Diode 1N5232 0.5W Through Hole 2-Pin

5.6V Zener Diode 1N5232 0.5W Through Hole 2-Pin is a versatile and reliable Zener diode that can use in a wide variety of electronic applications. It is a popular choice for hobbyists and professionals alike.

5.6V Zener Diode 1N5232 is a standard 1/2 Watt ( 0.5W ) with a low leakage current and accurate working voltage. The 1N5232 is ideal for use in clamping applications and protection circuits.

A Zener diode is a special kind of diode which allows current to flow in the forward direction like a regular diode, but also allows it to flow in the reverse direction when the voltage is above a certain value.

The 1N5232 is a 5.6V Zener diode with a power rating of 500mW. It is a standard through-hole device with a DO-35 package. The 1N5232 commonly use in clamping applications and protection circuits.

Zener diodes use in a variety of electronic circuits, such as voltage regulators, voltage references, and surge suppressors.

5.6 Volt Zener Diode is a type of semiconductor diode that conducts electricity in the reverse direction when the applied voltage exceeds a certain zener voltage, which in this case is 5.6 volts. Zener diodes are often used in voltage regulators and other electronic circuits that require a specific voltage to be maintained.

They have lots of uses, especially in safety circuits where you want to make sure a voltage signal doesn’t exceed a limit that might damage the circuit. This is known as the ‘breakdown voltage’. That means you apply voltage across them, and when a preset voltage is reached, they start conducting. A common analogy is a ‘pressure relief valve’.

Features : –

1N5232 5.6 Volt 500mW Zener diode is a two-way switch means that it can conduct current in forward as well as reverse direction. It is a heavily doped diode and permits the reverse current when a specific voltage level is reached.

Here are some of the features of the 1N5232,

• Silicon Planar Power Zener Diode
• High Reliability
• Very Sharp Reverse Characteristic
• Low Reverse Current Level.
• Vz-Tolerance ±5%.
• Low leakage current
• Accurate working voltage
• Ideal for clamping applications and protection circuits

5.6V Zener Diode 1N5232 Specifications : –

A 5.6V Zener diode is a type of semiconductor diode that conducts electricity in the reverse direction when the applied voltage exceeds a certain zener voltage, which in this case is 5.6 volts. Zener diodes are often used in voltage regulators and other electronic circuits that require a specific voltage to be maintained.

Here are some of the features of a 5.6V Zener diode:

• Zener voltage: 5.6V
• Power rating: typically 500mW
• Package: through-hole DO-35
• Leakage current: typically <1uA
• Reverse voltage: typically 10V
• Operating temperature: typically -55°C to +150°C

5.6V Zener Diode 1N5232 Applications : –

The 1N5232 is a 5.6V Zener diode with a power rating of 500mW. It is a standard through-hole device with a DO-35 package. The 1N5232 commonly use in clamping applications and protection circuits.

Here are some of the applications of the 1N5232:

• Voltage clamping
• Overvoltage protection
• Reference voltage generation
• Transistor switching
• Logic level conversion

Package : –

1 x 5.6V Zener Diode 1N5232 0.5W Through Hole 2-Pin
