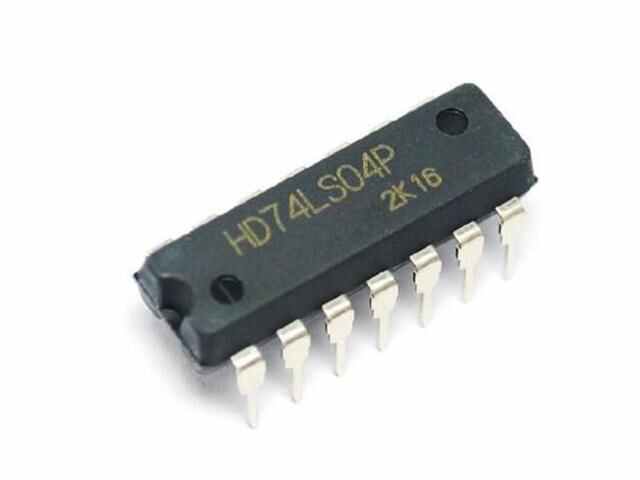

74LS04 1-Input HEX Inverter IC

74LS04 is a hex inverter integrated circuit (IC). It is a member of the 74LS family of logic ICs, which are low-power Schottky devices. The 74LS04 contains six independent inverters, each of which can use to invert a logic signal.

The IC has a positive logic threshold, which means that the output will be high when the input is low, and vice versa. The 74LS04 has a maximum operating frequency of 10 MHz and a maximum supply voltage of 5.5 V. It is available in a 14-pin dual in-line package (DIP).

74LS04 1-Input HEX Inverter IC is a logic gate that inverts its input signal. It has six independent inverters, each with one input and one output. The input signal can be either high or low, and the output signal will be the opposite.

The 74LS04 is a low-power Schottky device, which means that it consumes less power than other types of logic gates. It is also a very fast device, with a maximum operating frequency of 10 Mhz.

It consists of six inverters which perform logical invert action. output of an inverter is complement of its input logic state i.e. when input is high its output is low and vice versa. device contains six independent gates each of which performs logic INVERT function.

Operating voltage is 5V, high-level input voltage is 2V, and low-level input is 0.8V. Contains absolute maximum ratings over operating free-air temperature range, recommended operating conditions, electrical characteristics over recommended operating free-air temperature range.

Features : –

74LS04 is a 2 input quadruple 8-bit NOT gate IC. Inverter in logic converters is an electronics device whose basic functions are to invert the incoming logic weather it is HIGH or LOW. They are also known as NOT gates. Inverters are easy to design using NMOS and PMOS transistors.

• 6 Hex Inverters in a 14-Pin DIP Package
• Outputs Directly Interface to CMOS, NMOS and TTL
• Large Operating Voltage Range
• Wide Operating Conditions

74LS04 1-Input HEX Inverter IC Specifications : –

The 74LS04 comes up with six internal inverters. Every inverter uses a single power supply and it can  use individually like each other. The inverter IC comes up in multiple packages, which make its usage in multiple devices. The IC is cheaper and smaller in size.

Here are some additional details about the 74LS04:

• Supply voltage: 4.75 V to 5.25 V
• Maximum supply voltage: 7 V
• Maximum current per output: 8 mA
• Operating temperature range: 0°C to 70°C
• Logic threshold: Positive
• Package: 14-pin DIP

74LS04 1-Input HEX Inverter IC Applications : –

74LS04 is a versatile and reliable IC that can use in a wide variety of applications. If you are looking for a low-cost, high-performance inverter IC, the 74LS04 is a great option. 74LS04 is a versatile IC that can be used in a wide variety of applications. Some common uses include:

• Logic gates: The 74LS04 can use to construct a variety of logic gates, such as AND gates, OR gates, and NOT gates.
• Buffers: The 74LS04 can use to buffer logic signals, which means that it can use to amplify the strength of a signal or to isolate a signal from other parts of a circuit.
• Counters: The 74LS04 can use to construct counters, which are devices that can count the number of pulses that have been applied to them.
• Shift registers: The 74LS04 can use to construct shift registers, which are devices that can shift data in or out of a memory location.

Package : –

1 x 74LS04 1-Input HEX Inverter IC
