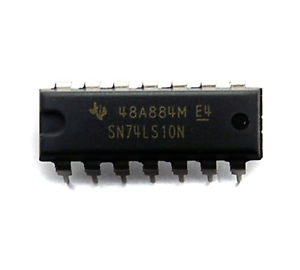

74LS10 TRI 3-Inputs NAND Gate IC

74LS10 is a triple 3 input NAND gate IC. It is a member of the 74LS family of logic gates, which are low-power Schottky devices. The 74LS10 has three independent NAND gates, each of which has three inputs and one output. The output of a NAND gate is LOW when any of its inputs are HIGH, and HIGH when all of its inputs are LOW.

NAND gate defined as a digital logic gate most commonly used in DLD applications. It also sometimes referred to as a universal logic gate and used to implement any logic gate or expression in existence. In case, if any one of  inputs to the NAND gate switch to high, the output of  gate will always be a logical low. On the other hand, a NAND gate yields a logical high only when all of its inputs set to LOW.

74LS10 IC can solder directly to the circuit board or easily mounted on a 14 pin IC base. They perform the Boolean functions Y = A • B • C or Y = A + B + C in positive logic.

This IC package comes with three independent positive logic 3-input NAND Gates fabricated in low power schotkey technology. The 74LS10 IC operates at a wide range of working voltage, a wide range of working conditions. And directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it quite easy to function with other TTL devices and microcontrollers.

74LS10 Operates at a supply voltage of 7V. This IC designed for operation over the full military temperature range of −55°C to 125°C.

Features : –

74LS10 IC package contains three independent positive logic 3-input NAND Gates. It is the part of 74XXYY IC series. The 74LS10 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL.

Here are some key features of 74LS10 IC

• Three Independent NAND Gates
• Standard Pin Configuration
• Fast Switching Times
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages

74LS10 TRI 3-Inputs NAND Gate IC Specifications : –

74LS10 Triple 3-input NAND Gate contain three independent 3-input NAND gates. The IC 74LS10 comes as smaller in size and offers much faster speed which makes it highly reliable in every kind of device.

Here some key specifications of 74LS10 IC

• Three independent 3-input NAND gates
• Low-power Schottky (LS) logic
• Wide operating temperature range (-65°C to +150°C)
• Fast switching speed (propagation delay of 20 ns)
• Input voltage: 4.75 V to 5.25 V
• Output voltage: 2.0 V to 5.0 V
• Current consumption: 1.6 mA (typical)
• Package: 14-pin DIP

74LS10 TRI 3-Inputs NAND Gate IC Applications : –

74LS10 is a versatile and reliable logic gate that can use in a wide variety of applications. It is a popular choice for engineers and hobbyists alike.

Here are some of the applications of the 74LS10:

• Digital logic circuits
• Data acquisition systems
• Control systems
• Programmable logic controllers (PLCs)
• Industrial automation systems
• Telecommunications systems
• Computer systems
• Consumer electronics

Package : –

1 x 74LS10 TRI 3-Inputs NAND Gate IC
