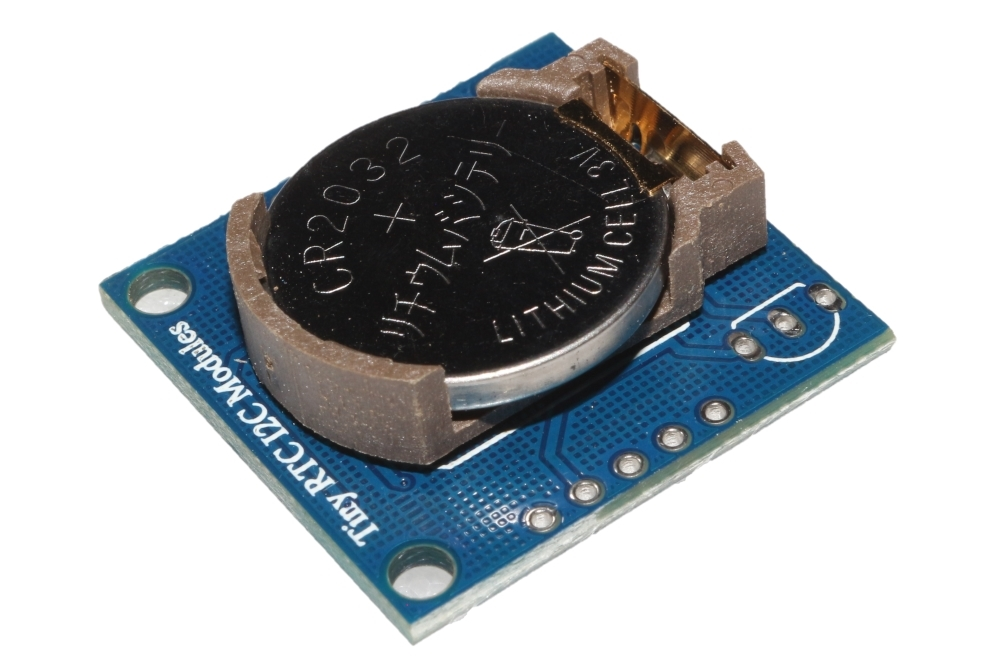

Tiny RTC I2C Module DS1307 Real Time Clock

The Tiny RTC Real Time Clock DS1307 I2C IIC Module for Arduino is a versatile and useful device that can use in a variety of applications. Tiny RTC I2C Module is a great choice for applications where accurate timekeeping is important, such as data logging, alarm systems, and industrial control.

The DS1307 module uses the I2C protocol to communicate with the Arduino. I2C is a two-wire bus that is use for communication between devices on a single board or between boards.

This DS1307 Tiny RTC I2C Module has a built-in battery that allows it to keep time even when the main power is disconnected. This Tiny RTC is very useful in data logging and other time-sensitive applications, as it ensures that the time is always accurate, even if there is a power outage.

Real Time Clock Module DS1307 is a 32.768 kHz crystal control oscillator that provides accurate timekeeping even when the main power disconnect. The DS1307 communicates with the microcontroller over the I2C bus, which makes it easy to interface with a variety of devices.

The RTC DS1307 can keep track of a lot of timekeeping information, and it can also output a square wave signal. The SQW pin can program to output one of four square-wave frequencies: 1Hz, 4kHz, 8kHz, or 32kHz.

The SQW pin is a versatile feature that can use in a variety of ways. It is a great way to get accurate timekeeping information from the DS1307, and it can also use to generate other types of signals.

The Real time clock module DS1307 also includes a 32-byte (4K x 8-bits) AT24C32 EEPROM (non-volatile) chip with 1,000,000 write cycles. This chip is not directly related to the RTC, but it can useful for storing data that needs to be preserve even when the main power disconnect.

Features : –

The TINY RTC I2C Module DS1307 is based on the DS1307 clock chip, which is a popular real-time clock (RTC) chip. The DS1307 module has a built-in battery, so it can keep time even when the main power disconnect. Tiny RTC Module also supports the I2C protocol, which makes it easy to interface with microcontrollers and other devices.

The DS1307 Module also has space on the board to solder your own DS18B20 temperature sensor. The DS18B20 is a popular temperature sensor that can use to measure the temperature of the environment. The temperature sensor can use to log temperature data, or to trigger alarms when the temperature reaches a certain threshold. The DS1307 RTC module is a popular real-time clock module that is used in a variety of applications. It has a number of benefits, including:

• Low cost
• Easy to use
• Built-in battery backup
• I2C communication
• Wide range of applications

Tiny RTC I2C Module DS1307 Specifications : –

The Tiny RTC Real Time Clock DS1307 I2C IIC Module for Arduino is a versatile and useful device that can be used in a variety of applications. It is a great choice for applications where accurate timekeeping is important, such as data logging, alarm systems, and industrial control. Here are some of the features of the DS1307 Tiny RTC Module:

• Low-cost and easy to use
• Supports the I2C protocol
• Built-in battery
• Provides seconds, minutes, hours, day, date, month, and year information
• Can operate in either the 24-hour or 12-hour format with AM/PM indicator
• Automatic date adjustment for months with fewer than 31 days
• Leap year correction up to 2100

Tiny RTC I2C Module DS1307 Pin Description : –

The module also has a hole in the center for a CR2032 battery. The battery is used to backup the time and date information in the module in case the main power is lost. The DS1307 Tiny RTC I2C Module has three pins:

• SDA: This is the serial data pin. It is used to send and receive data to and from the module.
• SCL: This is the serial clock pin. It is used to synchronize the data transfer between the module and the host device.
• VCC: This is the power supply pin. It provides power to the module.

Tiny RTC I2C Module DS1307 Applications : –

The DS1307 Tiny RTC I2C Module is a versatile and easy-to-use module that can use in a variety of applications. RTC I2C Module is a great option for applications that require accurate timekeeping. The DS1307 Tiny RTC I2C Module can use in a variety of applications, including

• Data logging
• Alarm systems
• Industrial control
• Home automation
• Telecommunications
• Medical devices
• Timing and scheduling
• Data acquisition
• Monitoring
• Security

Package : –

1 x Tiny RTC I2C Module
