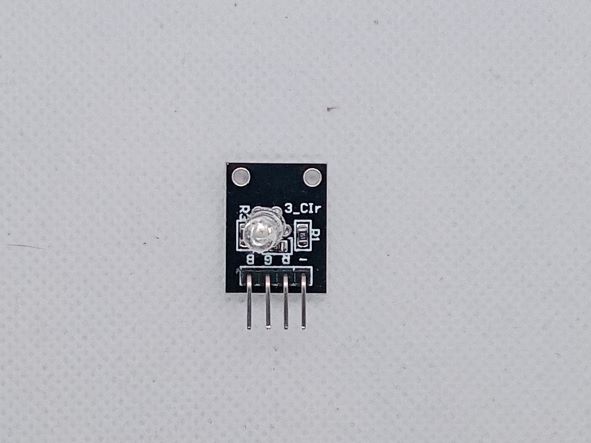

KY-016 RGB Three Color Module 5mm RGB Crystal LED

Sold by
sherjaan
@ sherjaan

KY-016 RGB Three Color Module consists of a plug-in full color LED made by R, G, B three pin PWM voltage input can be adjusted Section three primary colors (red / blue / green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects.

 100.00  60.00

In stock

KY-016 RGB Three Color Module consists of a plug-in full color LED made by R, G, B three pin PWM voltage input can be adjusted Section three primary colors (red / blue / green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved Cool lighting effects.

KY-016 RGB Three Color Module has a 5MM RGB LED that can be used to create virtually any color by varying the intensity of the 3 colors by using the PWM output to each pin. Resistors will be needed to connect to an Arduino.

input can be adjusted section three primary colors (red/blue/green) strength in order to achieve full color mixing effect. Control of the module with the Arduino can be achieved cool lighting effects.

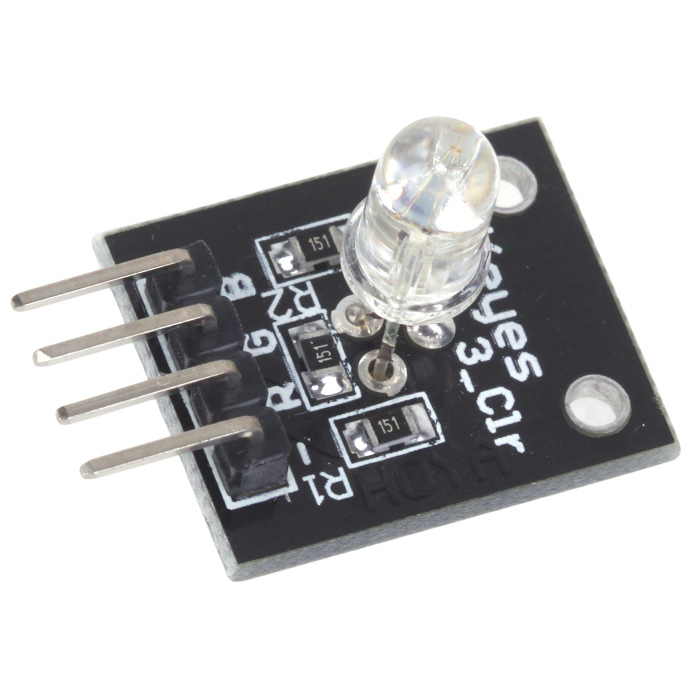

KY-016 RGB Three Color Module consists of a 5mm RGB LED, 3 150Ω limiting resistors to prevent burnout and 4 male header pins. Adjusting the PWM signal on each color pin will result on different colors.

This KY-016 RGB Three Color Module specially designed for Arduino will allow you to generate a light of any color (RGB) quickly and accurately. The LED Bulb Module RGB, consisting of an LED capable of creating any color using RGB, has a PWM voltage input with three pins.

These are capable of shining in a wide range of colors thanks to the mixture of the three colors. primary (red, green and blue). These types of diodes are called RGB and are made up of three red, green and blue diodes in the same package.
With this led you can handle more than 16.5 million colors. But remember that like any LED it is recommended to put a limiting resistance between 100 and 220 at the input of each pin (R, G, B).

Features: –

  • The use of plug-in full-color LED
  • RGB trichromatic limiting resistor to prevent burnout
  • Through the PWM adjusting three primary colors can be mixed to obtain different colors
  • With a variety of single-chip interface
  • The working voltage: 5V
  • LED drive mode: common cathode driver.

KY-016 RGB Three Color Module Specifications: –

  • Operating voltage: 3 .3 – 5 VDC
  • Control mode: Common cathode LED
  • 4 Pins: -1 Voltage connection
  • 2 Control of the R signal
  • 3 Control of the G signal
  • 4 B signal control
  • Material: PCB

KY-016 RGB Three Color Module Technical Details

  • The PCB size: 15 mm * 10.6 mm
  • PCB color: green
  • USES 5050 full-color super bright LED
  • To prevent burn resistor LED
  • Can meet all kinds of single chip microcomputer
  • High light LED
  • Working voltage: 3.3 V / 5 V
  • Weight: 4 g
  • Can be used directly plugged into the motherboard Arduino, without dupont lines to connect
Pin Description: –
ARDUINO SENSOR
Pin 10 LED Red
Pin 11 LED Green
Pin 12 LED Blue
Ground GND



Package: –

1 x KY-016 RGB Three Color Module
