1N5399 Diode 1000V 1.5A General Purpose Diode

1N5399 Diode 1000V 1.5A is a general purpose diode that can use in a variety of applications, including power supplies, inverters, and converters. It has a high continuous reverse voltage rating of 1000V and is suitable for forward currents of up to 1.5A. The diode has a low forward voltage drop of 1.0V.

If you are looking for a high-quality, reliable, and affordable diode for your next project, the 1N5399 is a great option.

The 1N5399 diode is a versatile and reliable option for a variety of applications. It is a good choice for high current and high voltage applications.

The 5399 diode is a rectifier diode that can be used in a variety of applications, including power supplies, inverters, and converters. It has a high continuous reverse voltage rating of 1000V and is suitable for forward currents of up to 1.5A. The diode has a low forward voltage drop of 1.0V.

5399 diode is a reliable and affordable option for a variety of applications.

A rectifier diode is a two-lead semiconductor that allows current to pass in only one direction. Rectifier diodes are a vital component in power supplies where they are used to convert AC voltage to DC voltage.

Current passing through a diode can only go in one direction, called the forward direction. Current trying to flow the reverse direction is blocked. They’re like the one-way valve of electronics. If the voltage across a diode is negative, no current can flow*, and the ideal diode looks like an open circuit.

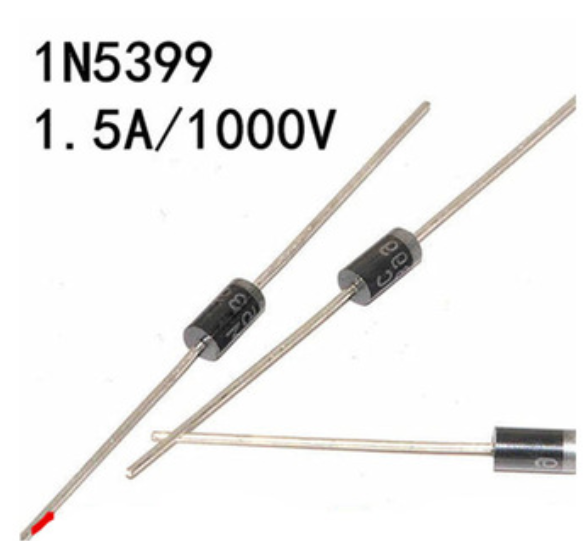

The 1N5399 diode has a cathode (-) and anode (+). In the schematic symbol, the tip of the triangle with the line on top of it is the cathode. The cathode is marked on the body of a diode by a band as shown in image.

Features : –

• High continuous reverse voltage rating
• High frequency operation
• Suitable for high current applications
• Low forward voltage drop
• Made from high-quality silicon
• RoHS compliant
• Low power loss, high efficiency
• Ideally suited for use as rectifiers in low–voltage
• free wheeling diodes
• polarity protection diodes
• Guarding for overvoltage protection
• Very small conduction losses
• Extremely fast switching
• Low forward voltage drop
• High forward surge capability

1N5399 Diode Specifications: –

Here are some of the key features of the 1N5399 diode:

• High continuous reverse voltage rating of 1000V
• Suitable for forward currents of up to 1.5A
• Low forward voltage drop of 1.0V
• Made from high-quality silicon
• RoHS compliant

Applications : –

Here are some of the common applications of the 1N5399 diode:

• Power supplies
• Inverters
• Converters
• Freewheeling diodes
• Protection diodes
