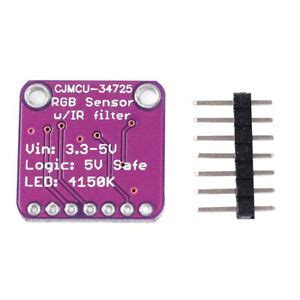

TCS34725 I2C RGB Color Sensor Module

The TCS34725 I2C RGB Color Sensor Module is a color light-to-digital converter (CLDC) that outputs RGB values digitally and provides clear light sensing values. TCS34725 is a popular sensor for use in robotics, wearables, and other applications where accurate color sensing is required.

TCS34725 has a number of features that make it a good choice for color sensing applications. An I2C color sensor is a type of color sensor that uses the I2C (Inter-Integrated Circuit) bus to communicate with other devices. This makes it easy to interface the sensor with microcontrollers and other devices that support the I2C bus.

TCS34725 Color Sensor has an IR blocking filter that minimizes the effects of infrared light on the color measurements. This allows for more accurate color sensing in applications where infrared light is present and communicates via the I2C bus, which makes it easy to interface with microcontrollers and other devices.

The TCS34725 color sensor has a typical operating voltage of 3.3 V and a maximum operating voltage of 3.8 V. It can power from a variety of sources, including a 3.3 V or 5 V power supply. If you are using a 5 V power supply, you will need to use a voltage regulator to step down the voltage to 3.3 V.

The TCS34725 also has a minimum operating voltage of 2.7 V. However, it is not recommended to operate the sensor at this voltage, as it may not be able to provide accurate readings.

Features :-

The TCS34725 is an I2C color sensor that is popular for use in robotics, wearables, and other applications where accurate color sensing required.

RGB Color Sensor TCS34725 is a versatile and accurate color sensor that can use in a wide range of applications. If you are looking for a color sensor with high sensitivity, wide dynamic range, and an IR blocking filter, then the TCS34725 is a good option to consider.

• High sensitivity: The TCS34725 is sensitive to a wide range of wavelengths, making it able to detect colors accurately even in low-light conditions.
• Wide dynamic range: The TCS34725 can measure a wide range of light intensities, making it suitable for use in applications where the ambient light level may vary significantly.
• IR blocking filter: The TCS34725 has an IR blocking filter that minimizes the effects of infrared light on the color measurements. This allows for more accurate color sensing in applications where infrared light is present.
• I2C interface: The TCS34725 communicates via the I2C bus, which makes it easy to interface with microcontrollers and other devices.

TCS34725 I2C RGB Color Specifications : –

The TCS34725 is a versatile and accurate color sensor that can use in a wide range of applications. If you are looking for a color sensor with high sensitivity, wide dynamic range, and an IR blocking filter, then the TCS34725 is a good option to consider. The TCS34725 has a number of features that make it a good choice for color sensing applications.

Here are some of the specifications of the TCS34725 RGB Color Sensor:

• Operating voltage: 2.7 V to 3.6 V
• Supply current: Typical: 100 μA, Maximum: 200 μA
• Resolution: 16 bits
• Dynamic range: 380,000:1
• Integration time: 2.4 ms to 61.4 ms
• Output format: 16-bit RGB
• Communication protocol: I2C

If you are using a 5 V power supply, you will need to use a voltage regulator to step down the voltage to 3.3 V. The microcontroller’s operating voltage must be compatible with the sensor’s operating voltage.

TCS34725 I2C RGB Color Applications : –

Here are some of the applications where the TCS34725 can be used:

• Robotics: The TCS34725 can use to detect and track objects in a robot’s environment. For example, a robot could use the TCS34725 to identify different colored objects in its environment and then take action accordingly.
• Wearable devices: The TCS34725 can use to measure the color of objects in the wearer’s environment. For example, a wearable device could use the TCS34725 to track the wearer’s food intake by measuring the color of food as it is consumed.
• Home automation: The TCS34725 can use to detect the color of objects in a home environment, such as fruits and vegetables. For example, a home automation system could use the TCS34725 to automatically adjust the lighting in a room based on the color of the walls or furniture.
• Industrial automation: The TCS34725 can use to detect and sort objects in an industrial setting. For example, an industrial automation system could use the TCS34725 to sort fruits and vegetables by color.

These are just a few of the many applications where the TCS34725 Color Sensor can be used. If you are looking for a color sensor with high sensitivity, wide dynamic range, and an IR blocking filter, then the TCS34725 is a good option to consider.

Package : –

1 x TCS34725 I2C RGB Color Sensor Module
