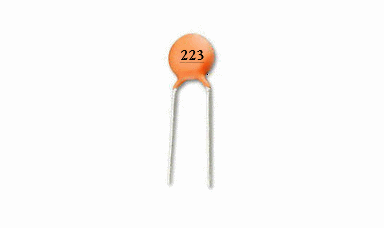

22nf Ceramic Disc Capacitor

22nF ceramic disc capacitor is small, inexpensive, and have a wide range of applications. They are often used to filter noise and to provide temporary storage of electrical energy.

These Ceramic Disc Capacitors features DIP(Dual in-line Package) Through Hole Mounting Type, Radial Leads, Low Voltage. Use widely in low voltage applications that are DC powered.

22nF ceramic disc capacitor has no polarity. That is, it can be connected in any direction. It is breadboard friendly. To add on that, it can be easily used on a perf board.

A capacitor where the ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes.

The composition of the ceramic material defines the electrical behavior and therefore applications. Ceramic capacitors are divided into two application classes:

A ceramic capacitor is a fixed-value capacitor in which ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes. The composition of the ceramic material defines the electrical behavior and therefore applications.

A ceramic capacitor is a fixed value capacitor in which ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes. Single layer disc, resin coated with through-hole leads.

Features: –

• Breadboard compatible
• No piezoelectric noise
• High precision and stability
• High ripple current capability
• Durable And Easy to Install
• Very convenient and practical

22nf Ceramic Disc Capacitor Specifications : –

• Stable, Low Cost Ceramic Capacitor
• Accuracy: ±20%
• Operating Temperature Range: +10°C to +85°C
• Dielectric Withstand: 2.5x Rated Voltage
• Body Diameter: 4mm
• Pin Spacing: 2.5mm

22nf Ceramic Disc Capacitor Applications : –

These are often used as safety capacitors in electromagnetic interference suppression applications.

• These Ceramic Disc Capacitors features: DIP(Dual in-line Package).
• Widely used in power supply, lighting equipment, home appliances, communications, security equipment, automotive electronics, new energy fields and more.
• Ceramic capacitors offer high stability and low losses for resonant circuit applications.
• Ceramic capacitors offer high volumetric efficiency for the buffer, by-pass, and coupling applications.
• Power supplies, to filter noise and provide temporary storage of electrical energy.
• audio and video circuits, to filter noise and improve sound quality.
• Digital circuits, to store data and to provide timing signals.
• Oscillators, to create a stable frequency.
• Sensors, to store charge and to convert physical signals into electrical signals.

Package : –

1 x 22nf Ceramic Disc Capacitor
