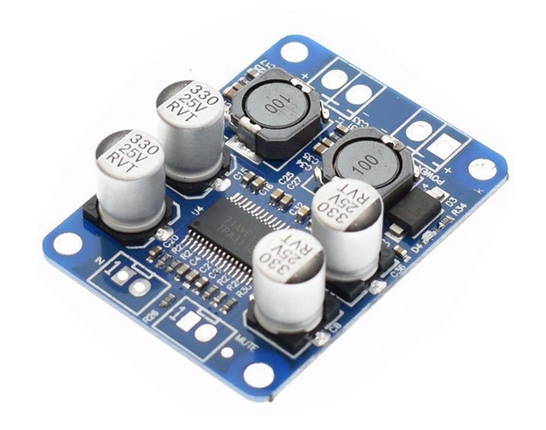

Name: TPA3118 Mono Amplifier board 60 Watt D2 PBTL 12V 24V
SKU: 18794
Price: 650.00 PKR
Availability: OutOfStock

TPA3118 Mono Amplifier board is a Class D amplifier that can deliver up to 60W of power to a single speaker. It is a popular choice for DIY audio projects, as it is relatively inexpensive and easy to use.

Mono Amplifier board TPA3118 is a small, easy-to-use amplifier that can be used in a variety of DIY audio projects. It can deliver up to 60W of power to a single speaker, making it suitable for driving large speakers or multiple speakers in a stereo system. The board is also very efficient, consuming less power than traditional Class A or B amplifiers.

This TPA3118 Mono Amplifier board comes with very good sound quality. The module equips Mono digital audio power amplifier chip. It has high output and low power consumption.

This TPA3118 Mono Amplifier is a Class-D stereo efficient, digital amplifier that can drive speakers up to 60W/8Ω. TPA3118 mono amplifier’s advanced oscillator/PLL circuit gives multiple switching frequency options to avoid AM interferences. This mono amplifier is fully protected against faults with short-circuit protection and thermal protection as well as over-voltage, under-voltage, and DC protection.

TPA3118 employs a shutdown mode of operation designed to reduce supply current to the absolute minimum level during periods of non-use for power conservation.

This device is a highly efficient Class-D audio amplifier with integrated 120mΩ that allows output currents up to 7.5A. The device can be configured for either master or slave operation by using the SYNC pin, which helps to prevent audible beats and prevent audible beats noise. An internal ADC is used to detect the 8 input states.

If you are looking for a powerful and versatile amplifier for your DIY audio projects, the TPA3118 Mono Amplifier board is a great option.

Features: –

High output power: The TPA3118 can deliver up to 60W of power to a single speaker, making it suitable for driving large speakers or multiple speakers in a stereo system.
Low power consumption: The TPA3118 is a Class D amplifier, which means that it is very efficient and consumes less power than traditional Class A or B amplifiers.
Small size: The TPA3118 board is very small and compact, making it ideal for use in small or portable audio systems.
Easy to use: The TPA3118 board is very easy to use and does not require any special configuration. Simply connect the input signal, power supply, and speaker, and you are ready to go.

Specifications : –

Audio input: Bluetooth receive
Power supply voltage: 8~26VDC (DC) polarity reverse protection
Power amplifier chip: 2x30W stereo TPA3118
Applicable speaker impedance: 4, 6, 8 ohm
AUX input: 3.5 earphone seat
Default device name: Audio Xpecial

TPA3118 Mono Amplifier board Configuration

Pin Name	Description
Audio In(+)	Positive Edge Audio Input
Audio In(-)	Audio Input Negative edge
Mute (Short Circuit Port)	Short circuit Jumper circuit for active Mute
Power In (VCC/+)	4.5v-24v DC power VCC
Power In (GND/-)	4.5v-24v DC power Ground
Speaker Out(-)	Output ( Speaker Negative Output )
Speaker Out(+)	Speaker Positive Output

Applications: –

TPA3118 Mono 60W amplifier is a Class D amplifier that can deliver up to 60W of power to a single speaker. It is a popular choice for DIY audio projects, as it is relatively inexpensive and easy to use. The board has a number of features that make it a good choice for a variety of applications
