UF4007 Diode General Purpose Ultra Fast

Sold by
sherjaan
@ sherjaan

UF4007 fast recovery diodes are widely used in high-frequency rectification and freewheeling in various switching power supplies or electric vehicle chargers, while the 1N4007 is generally used for power frequency rectification.

 5.00

In stock

SKU: UF4007 Categories: ,

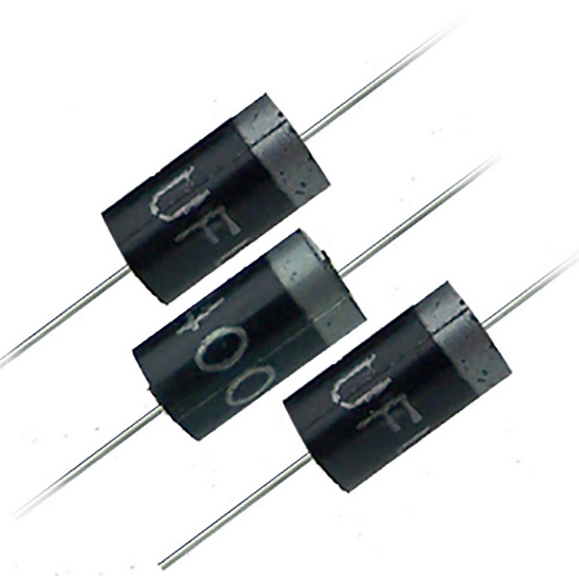

The UF4007 are axial leaded ultra fast recovery power diode in DO-41 package. The device features glass passivated chip junction, low cost, fast efficient plastic rectifiers, high efficiency, low forward voltage and low leakage current and high surge current capability.

UF4007 fast recovery diodes are widely used in high-frequency rectification and freewheeling in various switching power supplies or electric vehicle chargers, while the 1N4007 is generally used for power frequency rectification.

Fast Recovery Diode is a semiconductor device which possesses short reverse recovery time for rectification purpose at high frequency. A quick recovery time is crucial for rectification of high-frequency AC signal. Diodes are mostly used in rectifiers because they possess ultra-high switching speed.

Features: –

  • High surge current capability
  • Low forward voltage drop
  • High reliability
  • High current capability

UF4007 Diode Specifications: –

  • Maximum Recurrent Peak Reverse Voltage – 1000 V
  • Maximum Average Forward Output Current – 1 A
  • Max Forward Voltage Drop per element at 1.0A DC – 1.7 V
  • Maximum reverse recovery time – 75 ns
  • Typical Junction Capacitance 15 pF
  • Package – DO-41
  • Weight 0.33 grams
  • Operating and Storage Temperature Range -55…+125 °C

Polarity and Pinout

The UF4007 diode has a cathode (-) and anode (+). In the schematic symbol, the tip of the triangle with the line on top of it is the cathode. The cathode is marked on the body of a diode by a band as shown below.

The current can flow from only the anode to the cathode and never from the cathode to the anode – the UF4007 diode is like a one way electric valve.

Applications

Power Management, Industrial, Portable Devices, Consumer Electronics

Replacement and Equivalent

You can replace the UF4007 with the 1U8

Related Products at majju.pk
Datasheet:-

farnell.com/datasheets/1662165.pdf
